750L 1000L NSS.ACSS 35°C±1°C Salt Spray Test Chamber Salt Fog Test Chamber

1
MOQ
750L 1000L NSS.ACSS 35°C±1°C Salt Spray Test Chamber Salt Fog Test Chamber
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
테스트 챔버 볼륨: 108L/270L/600L/700L/1000L 또는 맞춤 제작
스프레이 수량: 1.0~2.0ml/80cm2/h
pH 범위: 6.5~7.2/3.0~3.2
전원 공급 장치: 220V 50Hz
테스트 챔버 온도: NSS.ACSS 35°C±1°C/CASS 50°C±1°C
포화 기온: NSS.ACSS 47°C±1°C/CASS 63°C±1°C
컨트롤러 유형: PID 또는 LCD 터치스크린
테스트 챔버 크기: 60*45*40cm, 90*60*50cm, 1200*1000*500cm, 1500*1000*500cm, 2000*1000*500cm
최대 액체 용량: 15리터, 25리터, 40리터
전력 소비: AC220V,10A ~ AC220V,30A
스프레이 노즐 타입: 보누트 원리
표시 파라미터: 온도, 습도, 압력, 분사량, 시간
디자인 표준: GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371
모델 변형: LY-609-60, LY-609-90, LY-609-120, LY-609-150, LY-609-200
온도 제어: 정밀 디지털 마이크로컴퓨터
강조하다:

750L Salt Spray Test Chamber

,

1000L Salt Fog Test Chamber

,

NSS.ACSS 35°C±1°C Cyclic Corrosion Chamber
기본 정보
원래 장소: 광동, 중국
브랜드 이름: Liyi
모델 번호: 리이
결제 및 배송 조건
제품 설명
Liyi Salt Spray Composite Test Chamber
The Liyi Salt Spray Test Machine evaluates corrosion resistance for iron metals and their inorganic or organic coatings, including electroplating, anodizing, conversion coatings, and paint finishes. This accelerated corrosion test predicts coating durability by analyzing oxide formation over time, with test duration varying by coating resistance.
Key Features
  • Bo Nute Principle spray nozzle prevents saline crystallization while atomizing test solution
  • Digital microcomputer controller ensures precise temperature regulation
  • Comprehensive display shows temperature, humidity, pressure, spray volume, and timing
  • Complies with international testing standards worldwide
Technical Specifications
Model LY-609-60 LY-609-90 LY-609-120 LY-609-150 LY-609-200
Design Standard GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371
Test Chamber Capacity (L) 108L 270L 600L 750L 1000L
Temperature (Test Chamber) NSS/ACSS: 35°C±1°C | CASS: 50°C±1°C
Temperature (Saturated Air Cylinder) NSS/ACSS: 47°C±1°C | CASS: 63°C±1°C
Chamber Dimensions (L×W×D cm) 60×45×40 90×60×50 120×100×50 150×100×50 200×100×50
Test Liquid Capacity (L) 15 25 40 40 40
Power Requirements AC220V, 10A AC220V, 15A AC220V, 30A AC220V, 30A AC220V, 30A
Product Images

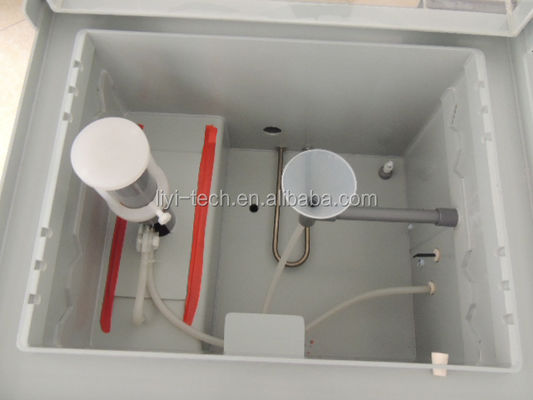

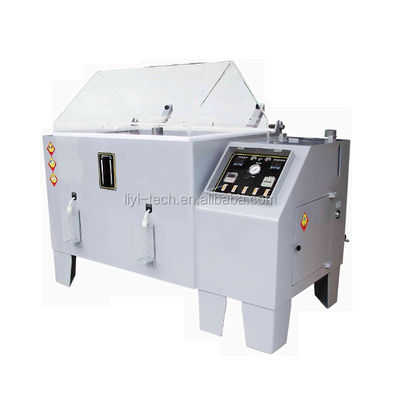

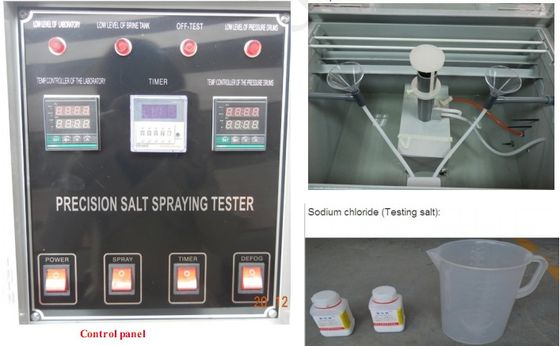

750L 1000L NSS.ACSS 35°C±1°C Salt Spray Test Chamber Salt Fog Test Chamber 0 750L 1000L NSS.ACSS 35°C±1°C Salt Spray Test Chamber Salt Fog Test Chamber 1 750L 1000L NSS.ACSS 35°C±1°C Salt Spray Test Chamber Salt Fog Test Chamber 2
Manufacturer Profile
Dongguan Liyi Environmental Technology Co., Ltd specializes in environmental testing equipment with advanced technology and comprehensive quality management. Our manufacturing base in Dongguan, Guangdong, supported by our Jiangsu office, serves customers in over 150 countries with reliable testing solutions for various industries.

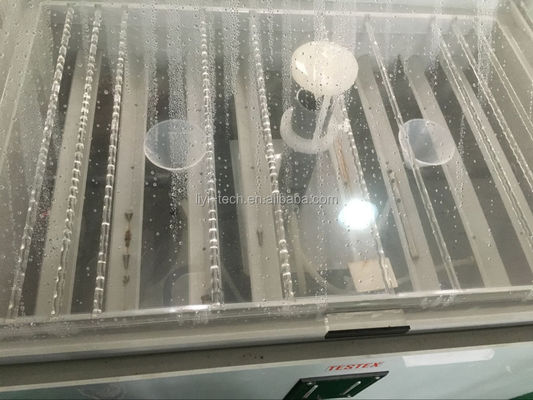

750L 1000L NSS.ACSS 35°C±1°C Salt Spray Test Chamber Salt Fog Test Chamber 3
Frequently Asked Questions
1. Are you the manufacturer? What is your warranty and after-sales service policy?
Yes, we are a professional manufacturer with 12 months warranty (extendable to 14 months for overseas shipments). We provide free maintenance during warranty and technical support via email or video call, with solutions typically provided within 24-48 hours of problem identification.
2. What is your standard delivery time?
Standard machines ship within 15-20 working days after deposit. We maintain stock for common models and can expedite production for urgent requirements.
3. Do you offer customization and OEM services?
We provide both standard and customized machines, including OEM/ODM services with client branding options.
4. How do I install and operate the equipment?
Machines ship pre-assembled with English operation videos. Most units only require power connection, though we offer on-site installation support when needed.

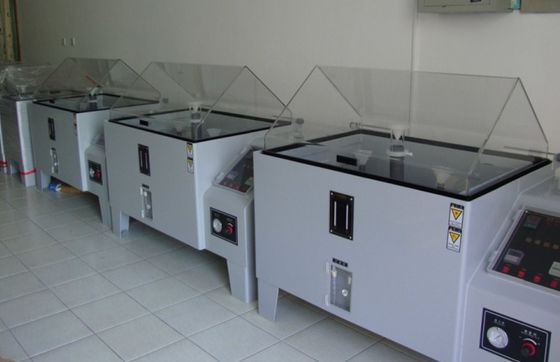

750L 1000L NSS.ACSS 35°C±1°C Salt Spray Test Chamber Salt Fog Test Chamber 4
