Automatic Salt Spray Test Chamber with 108L/270L/600L/700L/1000L Capacity and 220V 50Hz Power Supply

1
MOQ
Automatic Salt Spray Test Chamber with 108L/270L/600L/700L/1000L Capacity and 220V 50Hz Power Supply
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
전원 공급 장치: 220V 50Hz
전압 옵션: 220 V, 380 V, 240 V, 110 V
테스트 챔버 볼륨: 108L/270L/600L/700L/1000L 또는 맞춤 제작
스프레이 수량: 1.0~2.0ml/80cm2/h
pH 범위: 6.5~7.2/ 3.0~3.2
테스트 챔버 온도: NSS.ACSS 35°C±1°C/ CASS 50°C±1°C
포화 기온: NSS.ACSS 47°C±1°C/ CASS 63°C±1°C
테스트 챔버 크기: 60*45*40cm, 90*60*50cm, 1200*1000*500cm, 1500*1000*500cm, 2000*1000*500cm
최대 액체 용량: 15리터, 25리터, 40리터
전력 소비: AC220V,10A; AC220V,15A; AC220V, 30A
스프레이 노즐 타입: 보누트 원리
컨트롤러 유형: 디지털 마이크로컴퓨터
표시 파라미터: 온도, 습도, 압력, 분사량, 시간
디자인 표준: CNS3627,3885,4159,7669,8886/ JIS D-0201/ ISO3768/ ASTM B-117
테스트 사양: GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371
강조하다:

108L/270L/600L/700L/1000L Salt Spray Test Chamber

,

220V 50Hz Corrosion Test Machine

,

1 Year Warranty Salt Fog Test Chamber
기본 정보
원래 장소: 광동, 중국
브랜드 이름: LIYI
결제 및 배송 조건
제품 설명
Liyi Automatic Salt Spray Fog Corrosion Test Machine
The Liyi salt spray test machine evaluates corrosion resistance for iron metals and their inorganic or organic coatings, including electroplating, anodizing, conversion coatings, and paint finishes. This accelerated corrosion testing method predicts coating durability by exposing samples to controlled salt spray conditions.
Key Features
  • Bo Nute Principle spray nozzle prevents saline crystallization while creating precise atomization
  • Digital microcomputer controller ensures accurate temperature regulation
  • Comprehensive display shows temperature, humidity, pressure, spray capacity, and test duration
  • Complies with international testing standards for global acceptance
Technical Specifications
Model LY-609-60 LY-609-90 LY-609-120 LY-609-150 LY-609-200
Design Standard GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371
Test Chamber Capacity (L) 108L 270L 600L 750L 1000L
Temperature (Test Chamber) NSS/ACSS: 35°C±1°C | CASS: 50°C±1°C
Temperature (Saturated Air Cylinder) NSS/ACSS: 47°C±1°C | CASS: 63°C±1°C
Test Chamber Dimensions (cm) 60×45×40 90×60×50 120×100×50 150×100×50 200×100×50
Max Test Liquid Capacity (L) 15 25 40 40 40
Power Requirements AC220V, 10A AC220V, 15A AC220V, 30A AC220V, 30A AC220V, 30A

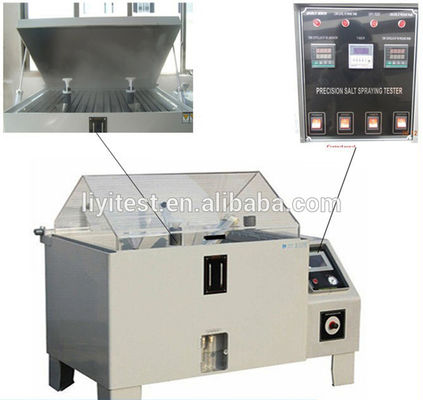

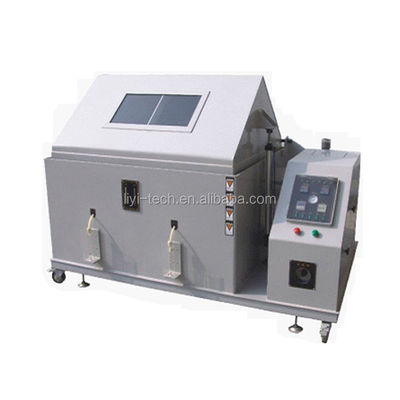

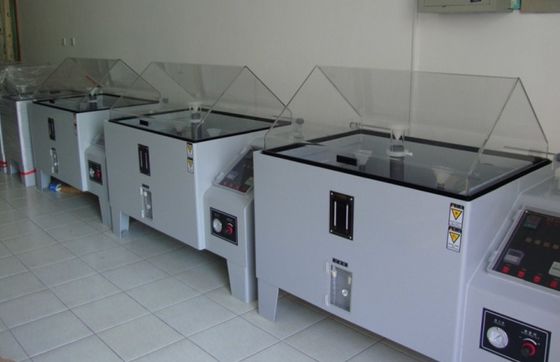

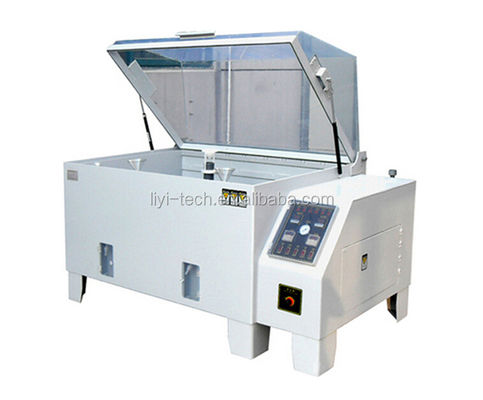

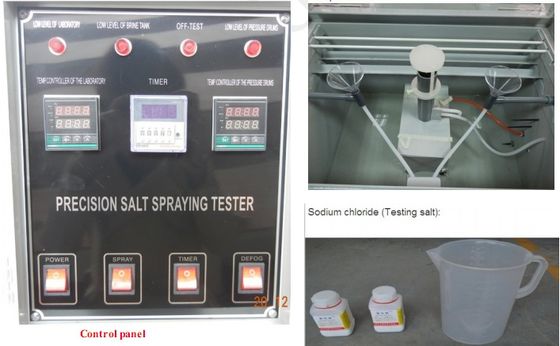

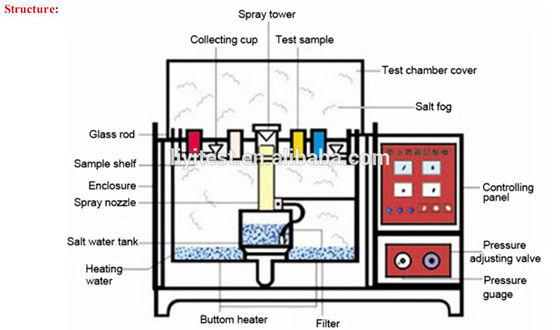

Product Images
Automatic Salt Spray Test Chamber with 108L/270L/600L/700L/1000L Capacity and 220V 50Hz Power Supply 0 Automatic Salt Spray Test Chamber with 108L/270L/600L/700L/1000L Capacity and 220V 50Hz Power Supply 1 Automatic Salt Spray Test Chamber with 108L/270L/600L/700L/1000L Capacity and 220V 50Hz Power Supply 2
Company Profile
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech manufacturing enterprise specializing in environmental testing equipment. With advanced technology, experienced personnel, and comprehensive quality management, we serve customers in over 150 countries from our production base in Dongguan, China, and our Eastern China office in Kunshan.
Frequently Asked Questions
1. Are you the manufacturer? What is your warranty and after-sales service policy?
Yes, we are a professional manufacturer of environmental testing equipment. All machines include a 12-month warranty (extended to 14 months for overseas shipments). We provide free maintenance during warranty and offer remote troubleshooting via email or video chat, with solutions typically provided within 24-48 hours.
2. What is your standard delivery time?
Standard models typically ship within 15-20 working days after deposit. We maintain stock of popular models and can expedite production for urgent requirements.
3. Do you offer customization and OEM services?
Yes, we provide both standard and customized machines according to customer specifications, including OEM branding options.
4. How do I install and operate the machine?
Most machines ship fully assembled - simply connect power to begin operation. We provide English instructional videos and can assist with on-site installation when necessary.
Automatic Salt Spray Test Chamber with 108L/270L/600L/700L/1000L Capacity and 220V 50Hz Power Supply 4
