LIYI 480L IP56 Protected 220V Salt Spray Test Chamber Cyclic Corrosion Test Chamber for Corrosion Resistance Testing

1
MOQ
LIYI 480L IP56 Protected 220V Salt Spray Test Chamber Cyclic Corrosion Test Chamber for Corrosion Resistance Testing
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
전원 공급 장치: 220V 50Hz
전압 옵션: 110V, 240V, 380V, 220V
보호 수업: IP56
테스트 챔버 용량: 108L, 270L, 600L, 750L, 1000L
스프레이 수량: 1.0~2.0ml/80cm2/h
pH 범위: 6.5~7.2, 3.0~3.2
테스트 챔버 온도: NSS.ACSS 35°C±1°C, CASS 50°C±1°C
포화 기온: NSS.ACSS 47°C±1°C, CASS 63°C±1°C
테스트 챔버 크기: 60*45*40cm, 90*60*50cm, 120*100*50cm, 150*100*50cm, 200*100*50cm
최대 액체 용량: 15리터, 25리터, 40리터
전력 소비: AC220V,10A; AC220V,15A; AC220V,30A
스프레이 노즐 타입: 보누트 원리
컨트롤러 유형: 디지털 마이크로컴퓨터
표시 파라미터: 온도, 습도, 압력, 분사량, 시간
디자인 표준: GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371
강조하다:

480L Salt Spray Test Chamber

,

IP56 Protected Cyclic Corrosion Test Chamber

,

220V Salt Spray Test Chamber
기본 정보
원래 장소: 광동, 중국
브랜드 이름: liyi
결제 및 배송 조건
제품 설명
LIYI 108L 270L 480L Corrosion Salt Water Spray Testing Machine
The LIYI salt spray test machine evaluates the corrosion resistance of iron metals and their inorganic or organic coatings, including electroplating, anodizing, conversion coatings, and paints. This accelerated corrosion test predicts the protective finish's suitability by analyzing corrosion product formation over time.
Key Features
  • Bo Nute Principle spray nozzle prevents saline crystallization while creating fine atomization
  • Digital microcomputer controller ensures precise temperature regulation
  • Clear display shows temperature, humidity, pressure, spray capacity, and test duration
  • Complies with international testing standards worldwide
Technical Specifications
Model LY-609-60 LY-609-90 LY-609-120 LY-609-150 LY-609-200
Test chamber capacity (L) 108L 270L 600L 750L 1000L
Temperature range NSS/ACSS: 35°C±1°C | CASS: 50°C±1°C
Chamber dimensions (L×W×D cm) 60×45×40 90×60×50 120×100×50 150×100×50 200×100×50
Test liquid capacity (L) 15 25 40 40 40
Power requirements AC220V, 10A AC220V, 15A AC220V, 30A AC220V, 30A AC220V, 30A

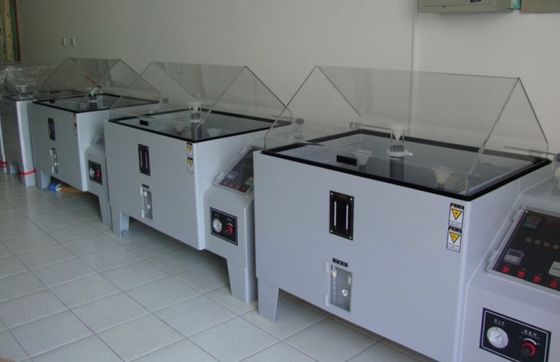

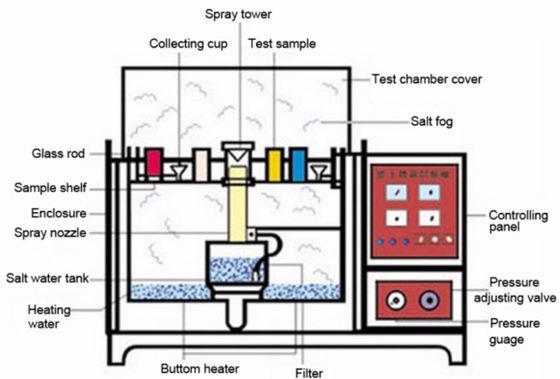

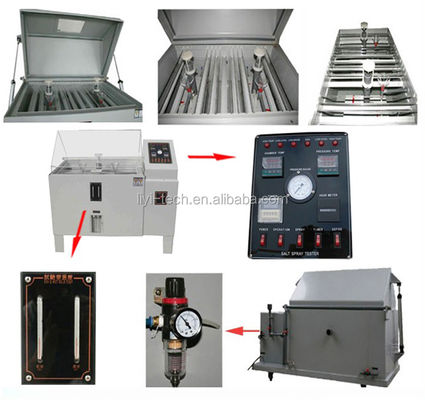

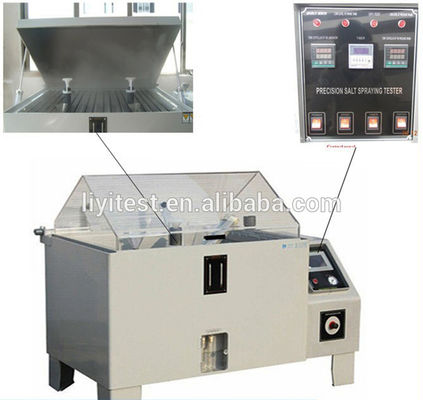

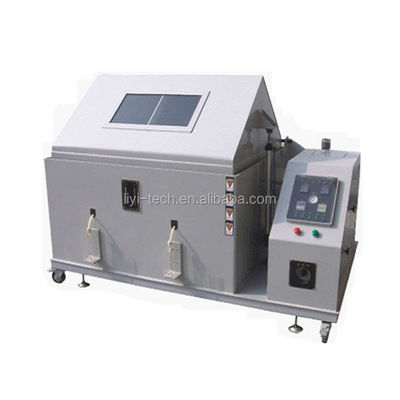

Product Images
LIYI 480L IP56 Protected 220V Salt Spray Test Chamber Cyclic Corrosion Test Chamber for Corrosion Resistance Testing 0 LIYI 480L IP56 Protected 220V Salt Spray Test Chamber Cyclic Corrosion Test Chamber for Corrosion Resistance Testing 1 LIYI 480L IP56 Protected 220V Salt Spray Test Chamber Cyclic Corrosion Test Chamber for Corrosion Resistance Testing 2
Manufacturer Information
Dongguan Liyi Environmental Technology Co., Ltd specializes in developing and manufacturing environmental testing equipment. With advanced technology and experienced personnel, we serve customers in over 150 countries, offering comprehensive testing solutions for various industries.
LIYI 480L IP56 Protected 220V Salt Spray Test Chamber Cyclic Corrosion Test Chamber for Corrosion Resistance Testing 3
Frequently Asked Questions
1. Are you the manufacturer? What about after-sales service and warranty?
Yes, we are a professional manufacturer of environmental testing equipment. All machines include 12 months warranty (extended to 14 months for overseas shipments). We provide free maintenance during warranty and technical support within 24-48 hours of problem identification.
2. What is the delivery time?
Standard machines typically ship within 15-20 working days after deposit. We can expedite production for urgent orders.
3. Do you offer customization and OEM services?
Yes, we provide both standard and customized machines, including OEM/ODM services with client branding.
4. How do I install and use the machine?
Most machines ship fully assembled - simply connect power to begin operation. We provide English operation videos and can assist with on-site installation when necessary.
